Product Overview

The DEENPU grease injection supply system pumps sealant grease to the grease injection control head on wireline lubricator installations, maintaining a grease column pressure above well pressure so braided line can enter or leave the well while it is live. Operating pressures range from 2000 to 15000 PSI with dedicated grease injection and grease return hoses.

The unit comprises a grease reservoir, positive displacement grease pump, pressure and volume controls, pressure gauges and the piping, valves and fittings needed to power and control the system — skid mounted and ready to connect.

Key Features

• Operating pressure 2000 – 15000 PSI
• Grease reservoir + positive displacement pump
• Pressure and volume control with gauges
• Grease injection and return hoses included
• Skid mounted, ready for field connection

Technical Specifications

Dimensions & Technical Data

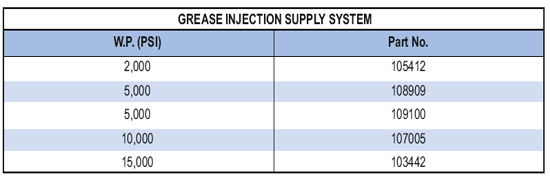

Grease injection supply system specifications

Quality & Testing

Every DEENPU Grease Injection Supply System is manufactured under our API-compliant quality system: raw material traceability, 100% dimensional inspection, hydrostatic pressure testing and hardness verification before packing. Material certificates, inspection reports and API documentation are provided with shipment on request.

Applications

• Live well wireline / slickline intervention
• Braided line pressure sealing systems
• Lubricator rig-ups on producing wells

Frequently Asked Questions

Q: How much grease pressure is needed?

A: Grease is injected roughly 20% above well pressure; the exact volume depends on line size, well pressure and flow tube clearance — our team can help calculate.

Q: Is the return grease recovered?

A: Yes — the system includes a grease return line so excess grease is routed back instead of spilled.
