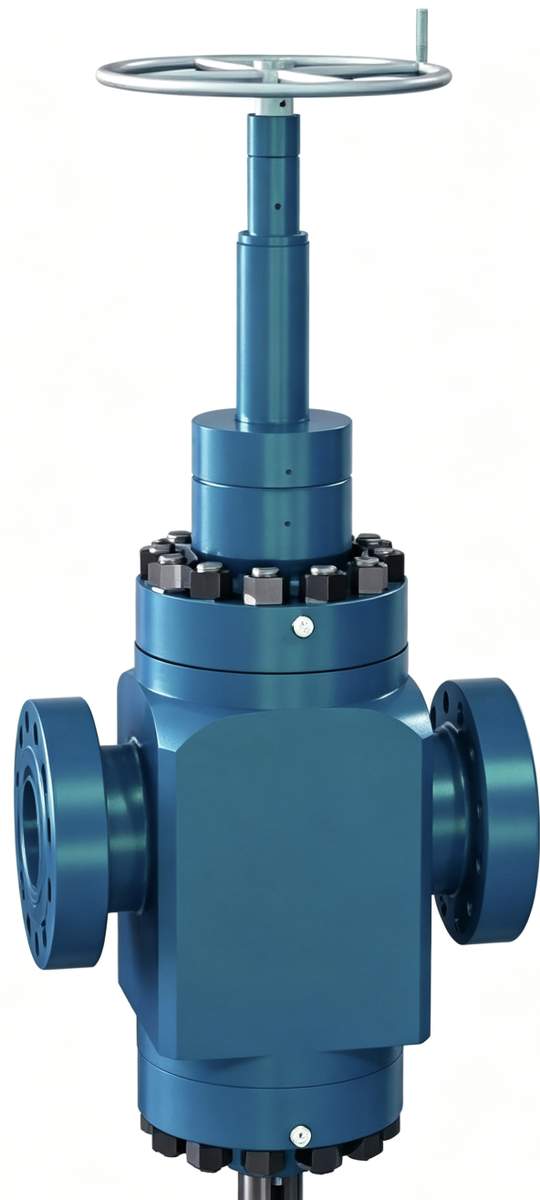

API 6A Frac Valve — Ball Screw Operated (BSO)
DEENPU Ball Screw Operated (BSO) Gate Valve is engineered specifically for high-pressure fracturing operations. The ball screw mechanism provides lower operating torque and faster operation compared to conventional ACME thread designs, making it ideal for frac trees and frac stacks requiring rapid valve cycling.
Available in bore sizes from 2-1/16 inch to 7-1/16 inch with 15,000 PSI working pressure. Manufactured to API 6A and NACE MR0175 standards with AISI 4130 forged body and bonnet.
Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Ball Screw Operated (BSO) Gate Valve |
| Bore Size | 2-1/16 inch – 7-1/16 inch |
| Working Pressure | Up to 15,000 PSI |
| Material | AISI 4130 Forged Body & Bonnet |
| Standard | API 6A, NACE MR0175 |
Key Features
- Ball screw mechanism for ultra-low operating torque
- Faster open/close cycle time for frac operations
- Full-bore thru-conduit design
- Bi-directional sealing capability
- Field-serviceable seat rings and gate
