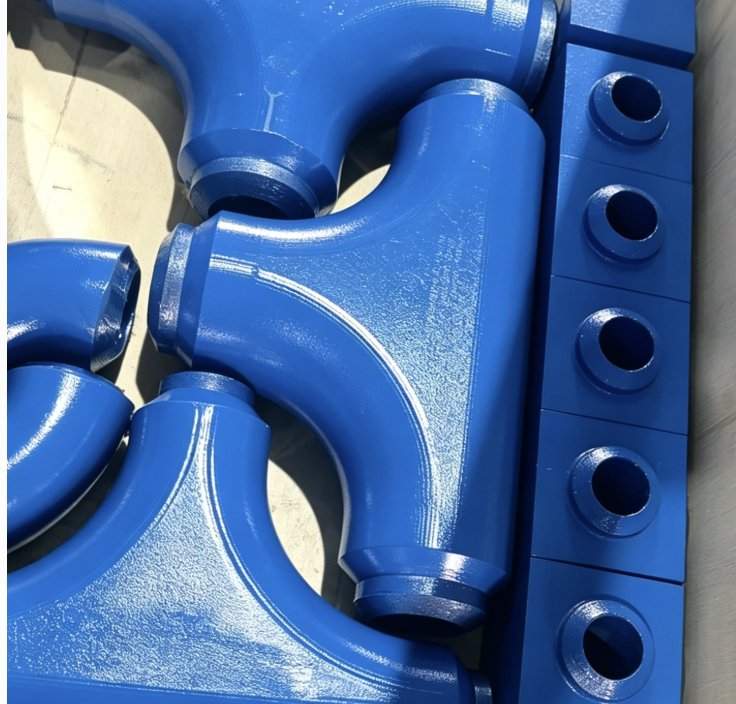

DEENPU 5 Inch 5K Manifold Fittings
Heavy-duty 5 inch manifold fittings for high-pressure oilfield manifolds. Rated 5,000 PSI with butt weld SCH.160 and SCH.XXS end connections.
Product Overview
DEENPU 5 inch 5K manifold fittings are designed for large-bore, high-pressure manifold systems used in fracturing, well testing, and production service. The range includes full flow crosses, long sweep full-flow tees, long sweep tees, 45° and 90° long sweep ells, 90° ells with 2 inch top outlet, 160° and 180° standpipe goosenecks, and long sweep Y fittings. All items in this size are rated at 5,000 PSI with butt weld schedule 160 or XXS ends.
Key Features
- Long sweep radius design minimizes turbulence and pressure drop for high-flow applications.
- Full flow paths on cross and full-flow tee configurations reduce erosion and improve service life.
- Precision-machined cast bodies to tight tolerances on horizontal machining centers.
- Interchangeable end connections: butt weld SCH.160/XXS, and special connections on request.
- Hydrostatically tested to 1.5 times the working pressure before delivery.
- Sour gas service configurations available for H₂S-bearing environments.
Technical Specifications
The following item numbers, descriptions, pressure ratings, and weights are included in the DEENPU 5 inch 5K manifold fitting range.
| Fitting Type | Item # | Description | Max. Press. PSI (BAR) | Weight Lbs. |
|---|---|---|---|---|
| Full Flow Cross (FFC) | 415103 | FULL FLOW CROSS 5555X,5" BW SCH.160 | 5,000 (345) | 515 |
| 415104 | FULL FLOW CROSS 5555X,5" BW SCH.XXS | 5,000 (345) | 515 | |
| 160° Gooseneck w/ Top Outlet (GSNKTO) | 415053 | GOOSENECK 160° W/TOP OUTLET,555GTO,5" BW SCH.160 | 5,000 (345) | 220 |
| 415054 | GOOSENECK 160° W/TOP OUTLET,555GTO,5" BW SCH.XXS | 5,000 (345) | 220 | |
| 160° Standpipe Gooseneck (GSNK160) | 415033 | GOOSENECK 160°,55G6,5" BW SCH.160 | 5,000 (345) | 200 |
| 415034 | GOOSENECK 160°,55G6,5" BW SCH.XXS | 5,000 (345) | 200 | |
| 180° Standpipe Gooseneck (GSNK180) | 415043 | GOOSENECK 180°,55G8,5" BW SCH.160 | 5,000 (345) | 220 |
| 415044 | GOOSENECK 180°,55G8,5" BW SCH.XXS | 5,000 (345) | 220 | |
| 90° Ell w/ 2" Outlet (525LSE90) | 415083 | LONG SWEEP ELL W/2" TOP OUTLET,525L90,5" BW SCH.160 | 5,000 (345) | 140 |
| 415084 | LONG SWEEP ELL W/2" TOP OUTLET,525L90,5" BW SCH.XXS | 5,000 (345) | 140 | |
| 45° Long Sweep Ell (LSE45) | 415073 | LONG SWEEP ELL,55L45,5" BW SCH.160 | 5,000 (345) | 74 |
| 415074 | LONG SWEEP ELL,55L45,5" BW SCH.XXS | 5,000 (345) | 74 | |
| 90° Long Sweep Ell (LSE90) | 415063 | LONG SWEEP ELL,55L90,5" BW SCH.160 | 5,000 (345) | 116 |
| 415064 | LONG SWEEP ELL,55L90,5" BW SCH.XXS | 5,000 (345) | 116 | |
| Long Sweep Full Flow Tee (LSFFT) | 415013 | LONG SWEEP FULL FLOW TEE,555T,5" BW SCH.160 | 5,000 (345) | 200 |
| 415014 | LONG SWEEP FULL FLOW TEE,555T,5" BW SCH.XXS | 5,000 (345) | 200 | |
| Long Sweep Tee (LST) | 415023 | LONG SWEEP TEE,555LST,5" BW SCH.160 | 5,000 (345) | 161 |
| 415024 | LONG SWEEP TEE,555LST,5" BW SCH.XXS | 5,000 (345) | 161 |
All 5 inch 5K items listed are rated at 5,000 PSI working pressure with BW SCH.160 or SCH.XXS end connections. Long sweep Y and special configurations available upon request.
Dimension Chart
Reference dimensions for the 5" 5K manifold fittings. Letters correspond to the engineering dimensional drawing.
| Dimension | Inches | mm |
|---|---|---|
| A | 6.81 | 173.0 |
| B | 24.00 | 609.6 |
| C | 19.00 | 482.6 |
| D | 12.00 | 304.8 |
| E | 5.50 | 139.7 |
| F | 7.00 | 177.8 |
| G | 7.25 | 184.2 |
| H | 4.25 | 108.0 |
| J | 16.00 | 406.4 |
| K | 6.74 | 171.2 |
| L | 11.50 | 292.1 |
| M | 3.75 | 95.3 |
| N | 6.00 | 152.4 |
| P | 3.50 | 88.9 |
| U | 3.50 | 88.9 |
| V | 5.88 | 149.4 |
| W | 4.47 | 113.5 |
Note: On butt weld fittings, the weld bevel is 37.5°. The O.D. and I.D. of weld end fittings match ANSI B36.10. 5 inch sizes are supplied with butt weld end connections only.
Materials & Manufacturing
Castings are manufactured from ASTM A216 Grade WCC carbon steel. Large 5 inch bodies are machined on horizontal machining centers for precise port alignment and uniform wall thickness.
Standards & Compliance
Weld-end dimensions conform to ANSI B36.10. Butt weld ends are supplied with a 37.5° bevel. Hydrostatic testing is performed to at least 1.5 times the rated working pressure.
Applications
- High-pressure wellhead and manifold flowlines
- Choke and kill line assemblies
- Fracturing and flowback operations
- Cementing and stimulation manifolds
- Mud and drilling fluid distribution systems
- Sour gas production and well-testing service
Available Configurations
Configurations include full flow cross (FFC), long sweep full flow tee (LSFFT), 160° gooseneck with top outlet (GSNKTO), long sweep tee (LST), 90° long sweep ell with 2" outlet (525LSE90), 45° long sweep ell (LSE45), 90° long sweep ell (LSE90), 160° standpipe gooseneck (GSNK160), and 180° standpipe gooseneck (GSNK180). Butt weld ends in SCH.160 and SCH.XXS. Long sweep Y and special configurations available upon request.
Inspection & Documentation
Every fitting is hydrostatically tested to a minimum of 1-1/2 times the rated working pressure. DEENPU provides material test reports, dimensional inspection reports, and hydrostatic test certificates on request. Traceability records are maintained for all pressure-retaining castings.
Packing & Delivery
Fittings are cleaned, preserved, and packed in robust wooden crates or export-standard cartons suitable for ocean and air freight. Weld-end protectors are fitted to prevent damage during transit. Packing lists and inspection documents are included with each shipment.
Information Required for Quotation
Please provide the following details so we can prepare an accurate quotation:
- Nominal size and pressure rating (e.g., 5 inch, 5,000 PSI)
- Fitting type (cross, tee, ell, gooseneck, etc.)
- End connection specification (BW SCH.160/XXS, or special)
- Material grade and sour gas requirement, if applicable
- Quantity required and delivery destination
FAQ
Q: Are LPT threaded connections available for 5 inch fittings?
A: 5 inch 5K manifold fittings are supplied with butt weld SCH.160 or SCH.XXS end connections only. LPT threaded options are not available in this size due to pressure rating requirements.
Q: Can these fittings be used for sour gas service?
A: Yes. Sour gas service versions are available. Please specify H₂S service when requesting a quotation so we can confirm material grade and compliance.
Q: What testing is performed before shipment?
A: All manifold fittings are hydrostatically tested to at least 1.5 times the rated working pressure. Material and test certificates are available on request.
Q: How do I choose the right schedule for butt weld ends?
A: Schedule selection depends on the working pressure and piping specification. SCH.160 and SCH.XXS are common for 5,000 PSI service; SCH.80 is typically rated for 3,000 PSI in selected sizes.
