Product Overview

DEENPU drill collars are manufactured from ultrasonically tested bars of chrome-molybdenum alloy steel (AISI 4145H modified) and are available in all sizes and connections per API Spec 7 and API RP 7G, in Range 2 lengths.

Bars are fully heat treated to 285–341 BHN with a minimum Charpy impact value of 40 ft-lb at operating temperature, giving the toughness needed for high torque and compressive loading. Spiral, hard-banding and non-magnetic variants cover special BHA requirements.

Key Features

• AISI 4145H modified chrome-moly alloy steel
• 100% ultrasonic inspection of bar stock
• Heat treated 285–341 BHN, Charpy 40 ft-lb
• API Spec 7 / RP 7G connections, Range 2
• Plain, spiral OD, hard-banded and non-magnetic options

Technical Specifications

Dimensions & Technical Data

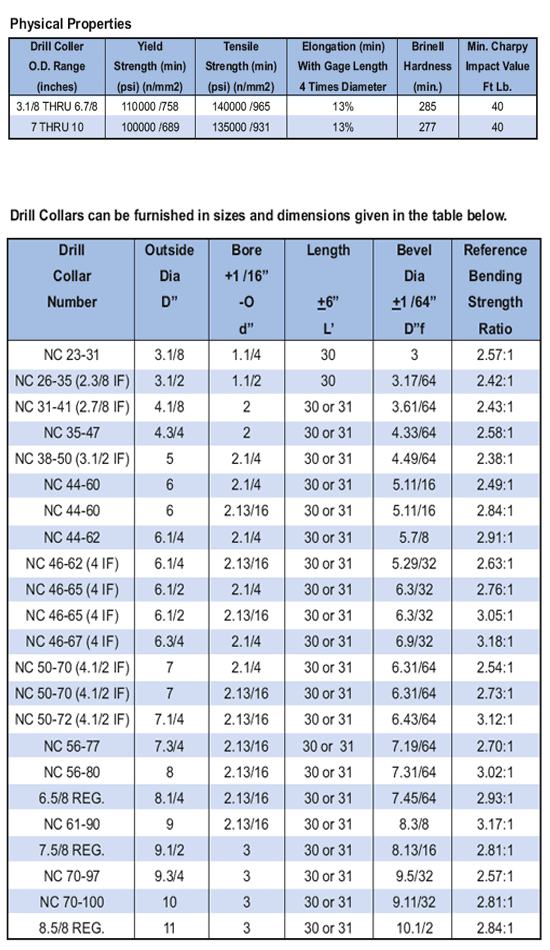

Drill collar dimensions — OD, ID, weight and connections

Quality & Testing

Every DEENPU Drill Collars is manufactured under our API-compliant quality system: raw material traceability, 100% dimensional inspection, hydrostatic pressure testing and hardness verification before packing. Material certificates, inspection reports and API documentation are provided with shipment on request.

Applications

• BHW (bottom hole weight) application in the BHA
• Stabilization and stiffness for directional control
• Standard drilling, spiral and non-magnetic BHAs

Frequently Asked Questions

Q: Why 4145H modified instead of standard 4145H?

A: The modified grade has tighter hardenability band control, giving uniform mechanical properties through the bar section.

Q: Do you supply non-magnetic collars?

A: Yes, non-magnetic drill collars for MWD/LWD BHAs are available alongside spiral and hard-banded variants.
