Integral Blade Stabilizer – API 7-1

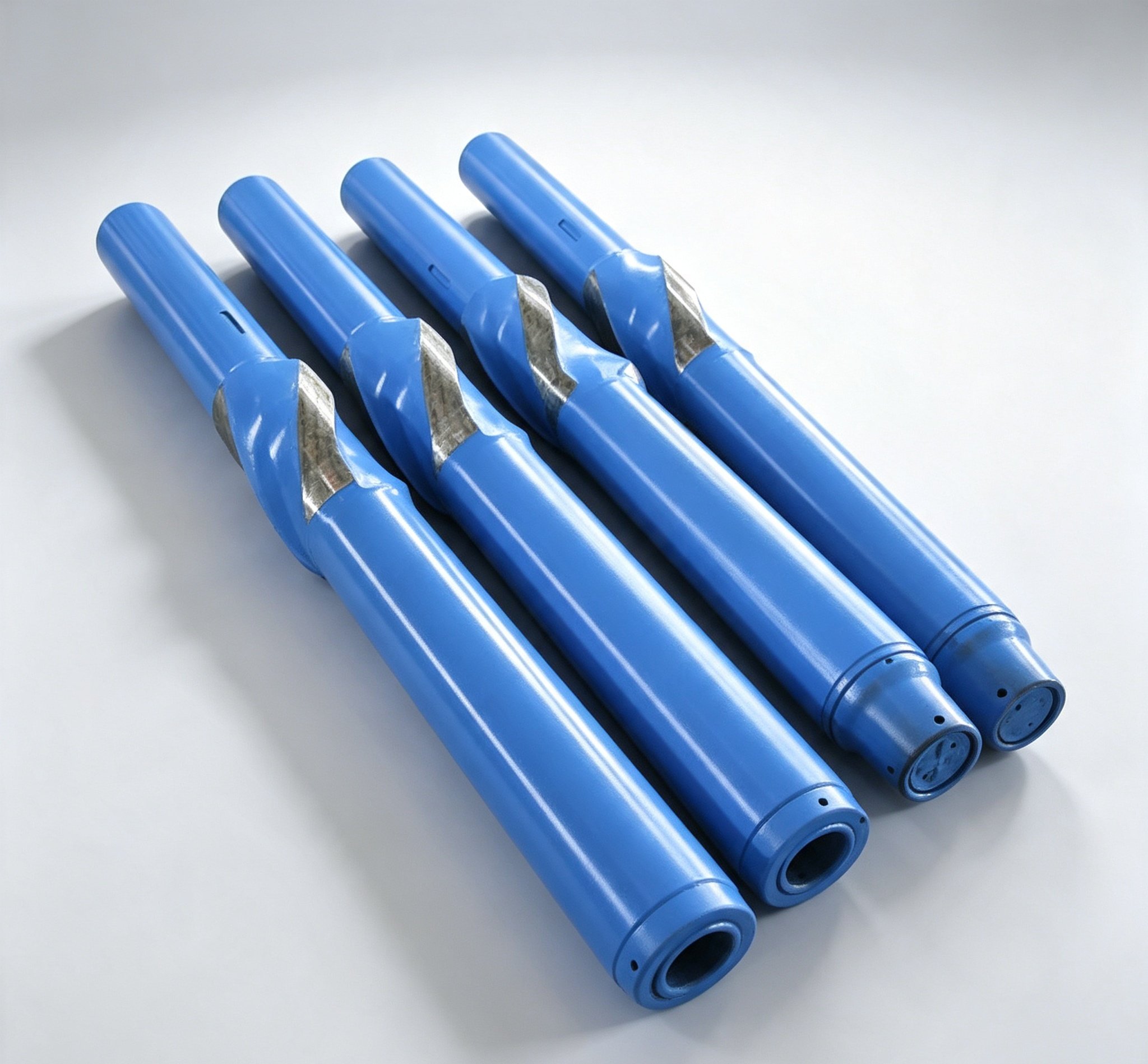

DEENPU Integral Blade Stabilizer is a one-piece forged downhole tool designed to centralize the drill string, maintain hole gauge, and minimize deviation in directional, horizontal, and vertical drilling operations. Manufactured from a single forged blank with no welded blades, the integral-body construction delivers superior torsional strength and fatigue resistance compared with welded-blade or replaceable-sleeve stabilizers.
Available in spiral and straight blade configurations, each stabilizer is hardfaced with tungsten carbide or HF1000 hardbanding for extended wear life in abrasive formations. Blades can be dressed with crushed carbide, PDC inserts, or diamond-enhanced inserts for hard and highly abrasive drilling environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Design Standard | API 7-1 / SY/T 5051 |
| Body Type | Integral forged (one-piece, no welds) |
| Blade Configuration | 3-blade / 4-blade, spiral or straight |
| Body Material | AISI 4145H / 4145H MOD alloy steel |
| Blade Hardfacing | Tungsten carbide / HF1000 hardbanding / PDC inserts |
| Hole Size Range | 6 inch to 26 inch (152 mm – 660 mm) |
| Connection Type | API Regular, IF, FH, NC (per drill string) |
| Tensile Strength | ≥ 140 ksi (965 MPa) min. |
| Yield Strength | ≥ 120 ksi (827 MPa) min. |
| Hardness | 285 – 341 BHN (body) |
| Service Environment | Standard & sour service (NACE MR0175 optional) |
Key Features
- One-piece integral forged body – no weld seams, eliminating fatigue failure points
- Blade geometry optimized for maximum wall contact and torque reduction
- Interchangeable with major OEM stabilizers – full dimensional compatibility
- Optional gauge protection: tungsten carbide inserts, PDC buttons, or diamond-enhanced
- Available in both string (drilling) and near-bit configurations
- Full API monogram traceability with material certs and dimensional inspection reports
- Re-dressing / rebuild service available to extend tool life
Applications
- Directional and horizontal drilling – rotary steerable and motor BHAs
- Vertical drilling – pendulum and packed-hole assemblies
- Hard and abrasive formations – extended gauge life in sandstone, chert, basalt
- Reaming and hole-opening operations
- Geothermal and mining drilling programs
Ordering Information
When requesting a quotation, please specify: hole size (or blade OD), fishing neck OD, connection type and size, blade count and wrap angle, hardfacing type, and required quantity. Custom sizes and non-standard connections are available on request.
