DEENPU ISA Annular BOP — Components & Seal Kits
Complete component breakdown for both Standard and I-Filter Seal configurations of the ISA Spherical Annular BOP. Each configuration includes all 26 components with descriptions and materials.

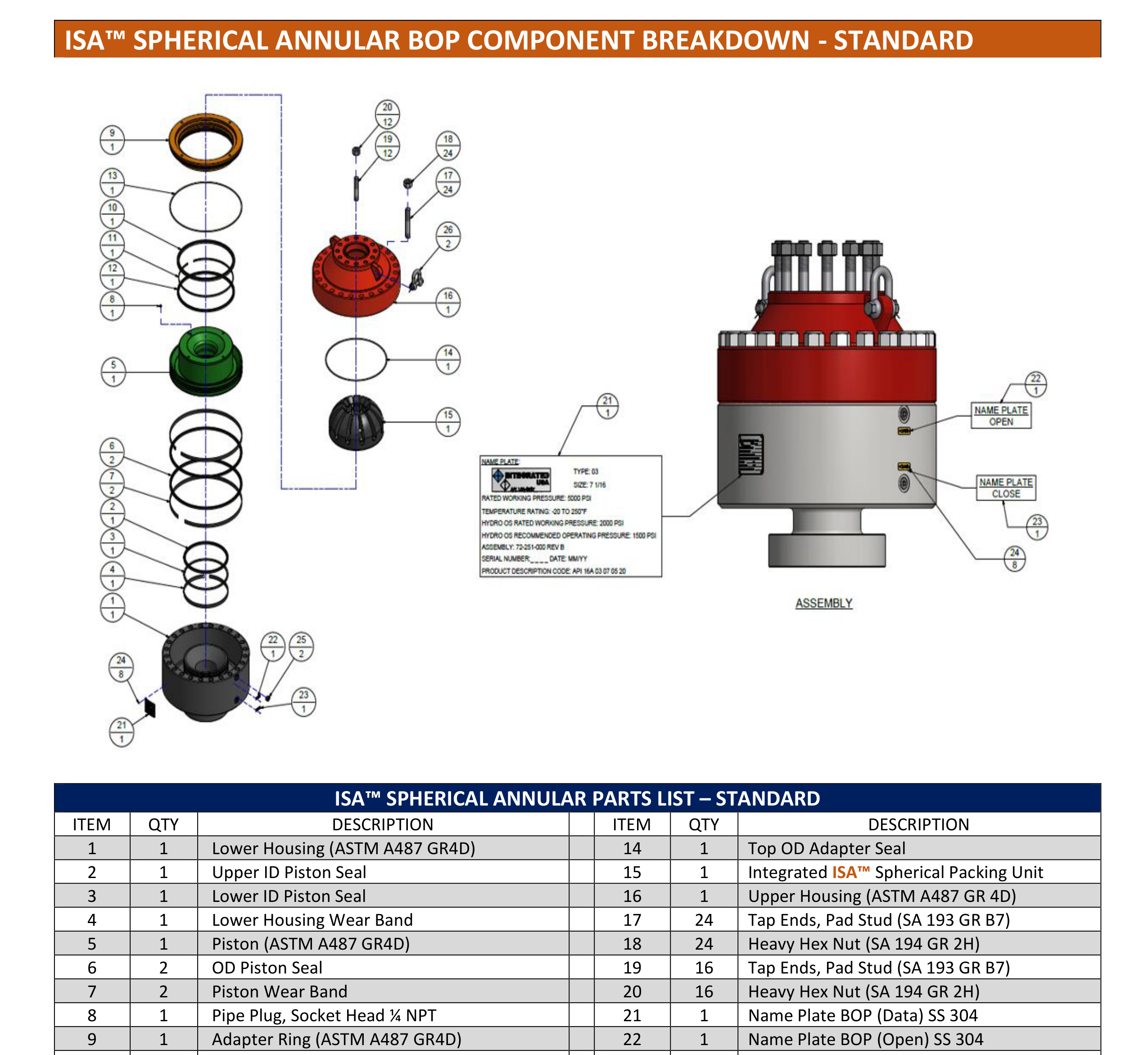

Standard Configuration — Complete Parts List (26 Items)
| Item | Qty | Description | Material |
|---|---|---|---|
| 1 | 1 | Lower Housing | ASTM A487 GR4D |
| 2 | 1 | Upper ID Piston Seal | Elastomer |
| 3 | 1 | Lower ID Piston Seal | Elastomer |
| 4 | 1 | Lower Housing Wear Band | PTFE |
| 5 | 1 | Piston | ASTM A487 GR4D |
| 6 | 2 | OD Piston Seal | Elastomer |
| 7 | 2 | Piston Wear Band | PTFE |
| 8 | 1 | Pipe Plug, 1/4 NPT | Steel |
| 9 | 1 | Adapter Ring | ASTM A487 GR4D |
| 10 | 1 | Upper ID Adapter Seal | Elastomer |
| 11 | 1 | Adapter Ring Wear Band | PTFE |
| 12 | 1 | Lower ID Adapter Seal | Elastomer |
| 13 | 1 | OD Adapter Seal | Elastomer |
| 14 | 1 | Top OD Adapter Seal | Elastomer |
| 15 | 1 | ISA Spherical Packing Unit | Elastomer/Steel |
| 16 | 1 | Upper Housing | ASTM A487 GR4D |
| 17 | 24 | Tap End Pad Stud | SA 193 GR B7 |
| 18 | 24 | Heavy Hex Nut | SA 194 GR 2H |
| 19 | 16 | Tap End Pad Stud | SA 193 GR B7 |
| 20 | 16 | Heavy Hex Nut | SA 194 GR 2H |
| 21 | 1 | Name Plate — Data | SS 304 |
| 22 | 1 | Name Plate — Open | SS 304 |
| 23 | 1 | Name Plate — Close | SS 304 |
| 24 | 8 | Rivet 0.125 x 20 | Aluminum |
| 25 | 2 | Pipe Plug 1.0″ NPT | Steel |
| 26 | 2 | Bolt Type Chain Shackle | Steel |
I-Filter Seal Configuration — Parts List
The I-Filter configuration adds a Holder I-Filter (Item 21) and I-Filter Seal (Item 22) for enhanced contamination protection. Stud/Nut quantities differ: Item 19/20 reduced from 16 to 12 each. Name plates use Easy-Drive nails (Item 26, 4 pcs).
| Item | Qty | Description |
|---|---|---|
| 1 | 1 | Lower Housing |
| 2 | 1 | Upper ID Piston Seal |
| 3 | 1 | Lower ID Piston Seal |
| 4 | 1 | Lower Housing Wear Band |
| 5 | 1 | Piston |
| 6 | 2 | OD Piston Seal |
| 7 | 2 | Piston Wear Band |
| 8 | 1 | Pipe Plug 1/4 NPT |
| 9 | 1 | Adapter Ring |
| 10 | 1 | Upper ID Adapter Seal |
| 11 | 1 | Adapter Ring Wear Band |
| 12 | 1 | Lower ID Adapter Seal |
| 13 | 1 | OD Adapter Seal |
| 14 | 1 | Top OD Adapter Seal |
| 15 | 1 | ISA Packing Unit |
| 16 | 1 | Upper Housing |
| 17 | 24 | Tap End Pad Stud B7 |
| 18 | 24 | Heavy Hex Nut 2H |
| 19 | 12 | Tap End Pad Stud B7 |
| 20 | 12 | Heavy Hex Nut 2H |
| 21 | 1 | Holder I-Filter |
| 22 | 1 | I-Filter Seal |
| 23 | 2 | Pipe Plug Socket Head |
| 24 | 2 | Bolt Type Chain Shackle |
| 25 | 1 | Name Plate Data |
| 26 | 4 | Nail Easy-Drive |
Complete Seal Kit Part Breakdown
| Seal Description | 7-1/16″ 3/5K | 9″ 3K | 11″ 3K | 11″ 5K | 13-5/8″ 3/5K | 21-1/4″ 2K |
|---|---|---|---|---|---|---|
| COMPLETE SEAL KIT | 82-221-55079-WB | 82-221-55077-WB | 82-221-55075-WB | 82-221-55030-WB | 82-221-55070-WB | 82-221-55067-WB |
| Adapter ID O-Ring | 82-221-30405 | 82-221-31109 | 95-05110320182 | 95-05110520181 | 95-06130520176 | 30-000020 |
| Adapter OD O-Ring | 82-221-30408 | 82-221-30784 | 95-05110320181 | 95-05110520176 | 95-06130520181 | 30-000027 |
| Lip Seal Adapter ID Upper | 82-221-31104 | 82-221-31145 | 95-05110320176 | 95-05110520178 | 95-06130520178 | 30-000026 |
| Wear Band Adapter Ring | 95-05110520172 | 95-05110520172 | 95-05110520172 | 95-05110520172 | 95-05110520172 | 95-05110520172 |
| Lip Seal Adapter ID Lower | 82-221-31002 | 82-221-31037 | 95-05110320177 | 95-05110520177 | 95-06130520177 | 30-000024 |
| Lip Seal Piston OD | 82-221-30780 | 82-221-31012 | 95-05110320175 | 95-05110520175 | 95-06130520175 | 30-000019 |
| Wear Band Piston | 95-05110520172 | 95-05110520172 | 95-05110520172 | 95-05110520172 | 95-05110520172 | 95-05110520172 |
| Seal Piston ID Upper | 82-221-31105 | 82-221-31110 | 95-05110320173 | 95-05110520173 | 95-06130520173 | 30-000022 |
| Seal Piston ID Lower | 82-221-31000 | 82-221-31002 | 95-05110320174 | 95-05110520174 | 95-06130520174 | 30-000023 |
| Wear Band Lower Housing | 95-05110520180 | 95-05110520180 | 95-05110520180 | 95-05110520180 | 95-05110520180 | 95-05110520180 |
Wear bands are cut to length. Complete seal kits are carded for easy inventory management.
Contact DEENPU for Orders & Technical Support
Email: SALES@DEENPU-MACHINERY.COM
WhatsApp: +86 158 0628 4962
