Product Overview

The DEENPU wireline stuffing box seals around the slickline at the top of the lubricator while the line is being run in or out of a live well. A hand-tightened pack-off compresses the packing element around the line; the integral sheave redirects the line to the floor block.

The light-weight design features a self-aligning sheave that follows line angle changes, reducing line wear and side load on the stuffing box. A composite-sheave version reduces weight further for manual rig-ups.

Key Features

• Self-aligning sheave tracks line angle automatically
• Quick-tighten pack-off with replaceable packing
• Light-weight design for manual handling
• Composite sheave option for further weight saving
• Working pressure to 15000 PSI with matching lubricator

Technical Specifications

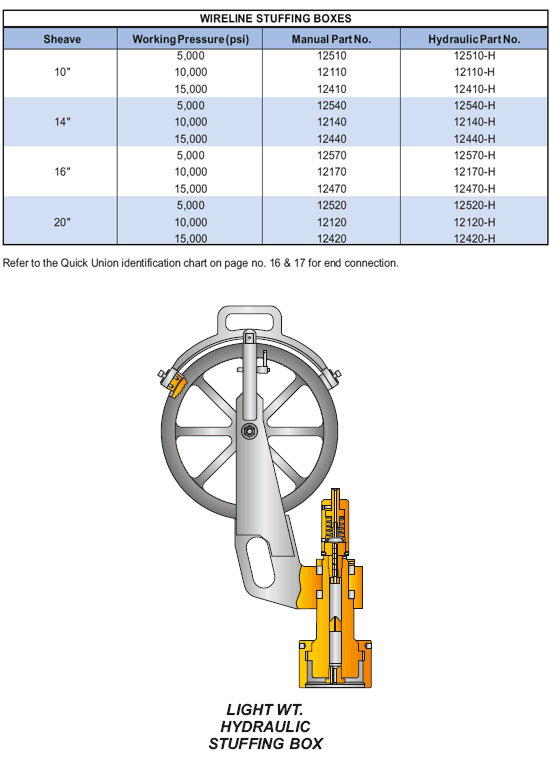

Dimensions & Technical Data

Stuffing box specifications — light weight and composite sheave versions

Quality & Testing

Every DEENPU Wireline Stuffing Box is manufactured under our API-compliant quality system: raw material traceability, 100% dimensional inspection, hydrostatic pressure testing and hardness verification before packing. Material certificates, inspection reports and API documentation are provided with shipment on request.

Applications

• Slickline operations on live wells
• Top of lubricator / wireline valve stack

Frequently Asked Questions

Q: Stuffing box or grease head — which do I need?

A: For slickline, a stuffing box normally suffices. For braided line, or higher pressure with larger line, a grease injection head is used — many stacks carry both.

Q: Are pack-off elements stocked?

A: Yes, DEENPU supplies replacement packing sets for all sizes.
