DEENPU C-HD Spider Air Control System & Accessories

Product Overview

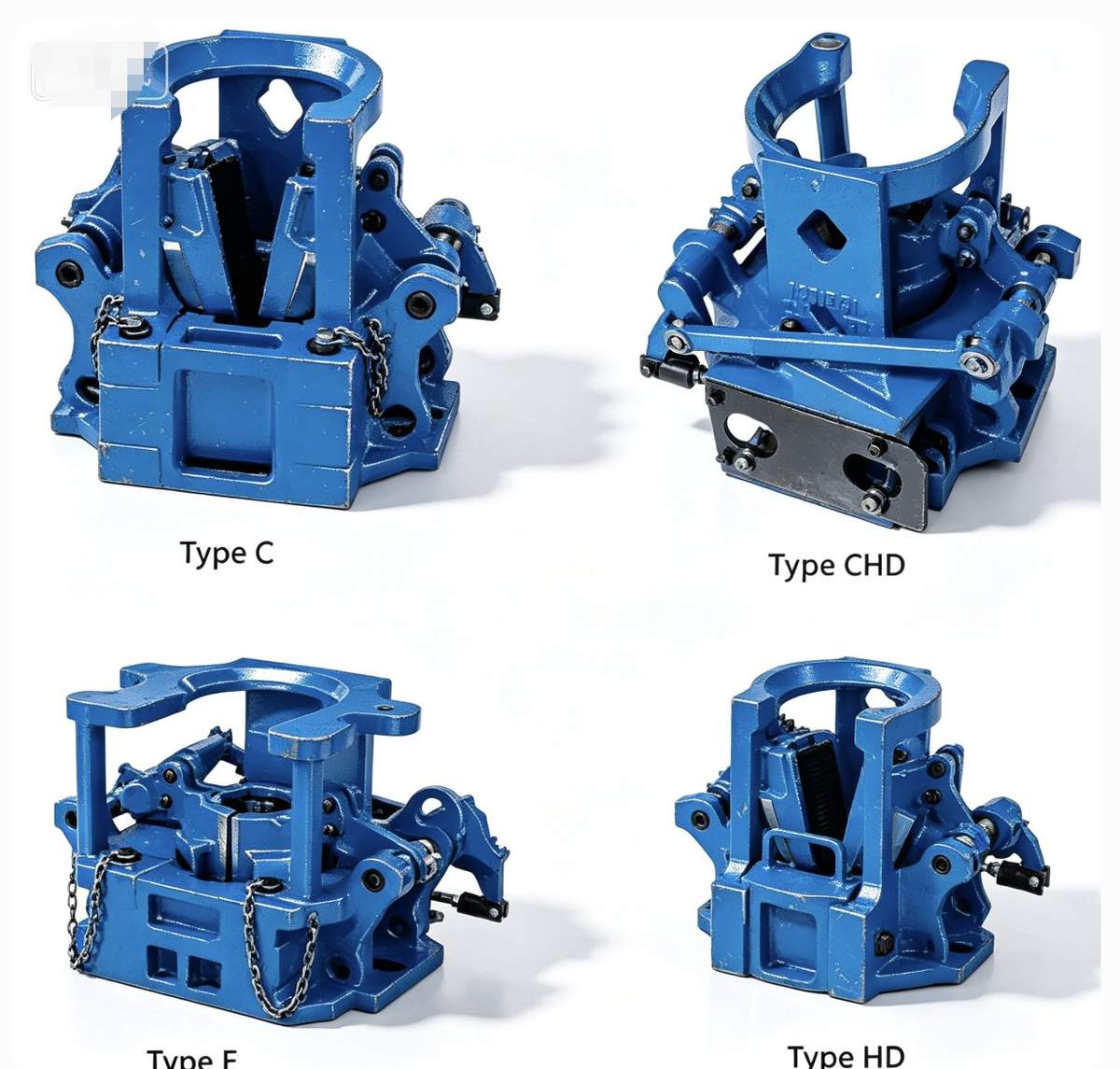

The DEENPU C-HD Spider Air Control System provides safe and reliable pneumatic operation of DEENPU C-HD air operated tubing spiders. The system consists of a foot-operated air control valve, reinforced air hose assemblies with quick-change couplings, and a filter-regulator-lubricator (FRL) assembly that conditions the rig air supply before it reaches the spider air cylinder. All components are selected to match the operating pressure and flow requirements of Models B, C, CHD, F, and G spiders.

Whether outfitting a new spider or refurbishing an existing unit, DEENPU supplies the complete air control package and repair kits needed to keep the pneumatic system operating efficiently.

Key Features

• Foot-operated ratchet-type valve — TB200 allows hands-free slip control
• Quick-change hose couplings — fast rig-floor connection and disconnection
• Reinforced air hose assemblies — TB300-15 15-foot hoses supplied in sets of three
• FRL assembly — TB400 combines air filter, pressure regulator, gauge, and lubricator
• Repair kit availability — TB200-R seal kit restores the foot valve
• Matched to C-HD spider models — selected for 35 PSI up to 300 PSI operating pressures

Technical Specifications

Air Control System Components Detail

TB200 Air Control Valve Assembly

The TB200 is a foot-operated 3/8″ ratchet-type air valve. It directs pressurized air to either side of the spider air cylinder, raising or lowering the slips as required. The ratchet mechanism holds the selected position without continuous foot pressure. Quick-change male hose couplings are fitted for fast connection to the TB300 hose assemblies, and a safety cover guard protects the valve from accidental damage on the rig floor.

TB200-R Repair Kit

The repair kit contains all seals, gaskets, and pins commonly required to rebuild a leaking or worn TB200 valve:

• TB265 “O” Ring (2 pcs)
• TB276 Roll Pin for Ratchet (2 pcs)
• TB214 Gasket, Valve Repair (1 pc)
• TB280 Tube of Rubber Cement (1 pc)

TB300-15 Air Hose Assembly

Each TB300-15 assembly is 15 feet (4.5 meters) long and complete with quick-change fittings. One assembly consists of one TB301-15 hose, two TB303 hose ferrules, two TB306 barbed hose stems, and two TB305 female quick-change couplings. DEENPU supplies these hose assemblies in sets of three to connect the rig air supply, FRL outlet, foot valve, and spider air cylinder.

TB400 FRL Assembly

The TB400 combines an air filter, pressure regulator with gauge, and lubricator in one compact assembly. It removes moisture and particulates from the rig air supply, regulates pressure to the value required by the spider model, and introduces a controlled amount of lubricating oil into the air stream to protect the valve and cylinder.

Materials & Manufacturing

The TB200 valve body is cast from aluminum or bronze alloy with hardened steel internal components and nitrile/Buna-N seals. Hose assemblies use oil-resistant reinforced rubber hose with carbon-steel barbed stems and brass quick-change couplings. The TB400 FRL unit features polycarbonate or metal bowls, adjustable regulator spring, and sintered bronze filter element.

Standards & Compliance

• Components selected to match API 7K / API 8C pneumatic system practices
• Hose assemblies rated for oil-laden compressed air at oilfield pressures
• Pressure regulator compatible with rig air systems from 40 PSI to 300 PSI
• Spare parts dimensionally interchangeable with original C-HD spider air systems

Applications

• Pneumatic actuation of C-HD air operated tubing spiders
• Replacement and repair of existing foot valves and hose lines
• Retrofit of manual spiders to air-operated control
• Workover, completion, and drilling rigs with available compressed air

Available Configurations

Inspection & Documentation

• Pressure test certificate for valves and FRL assemblies
• Assembly drawing and connection schematic
• Packing list with individual part numbers
• Operation and maintenance instructions

Packing & Delivery

Valves and FRL units are packed in individual boxes with foam padding. Hose assemblies are coiled, banded, and boxed to prevent kinking. Kits are shipped as complete sets or individual line items as requested.

• Delivery: 7 – 25 days, depending on quantity
• Packing: Individual cartons, export crating available
• Shipping: FOB, CIF, or DAP

Information Required for Quotation

• Spider model (B, C, CHD, F, G) and required operating pressure
• Available rig air supply pressure and line size
• Quantity of TB200 valves, TB300-15 hose sets, and TB400 FRL units
• Whether repair kits (TB200-R) are required
• Hose length preference (standard 15 ft, or custom length)
• Destination port and Incoterms

FAQ

How many TB300-15 hose assemblies are needed for one spider?
A typical installation requires three 15-foot hose assemblies: one from the rig air supply to the FRL, one from the FRL to the foot valve, and one from the foot valve to the spider air cylinder.

What air pressure should I set on the TB400 regulator?
Set the regulator to the operating pressure specified for your spider model: 35-45 PSI for Model B, 40-50 PSI for Models C/CHD, 60-80 PSI for Model F, and 250-300 PSI for Model G.

How often should the TB200-R repair kit be used?
The repair kit is used whenever the foot valve shows air leakage, sluggish operation, or ratchet failure. Preventive rebuild is recommended during annual maintenance.

Can I buy the hose fittings separately?
Yes. Individual components including TB301-15 hose, TB303 ferrules, TB305 couplings, and TB306 barbed stems can be supplied.

Is the TB400 FRL assembly mandatory?
While not strictly mandatory, the FRL is strongly recommended to protect the valve and cylinder from contamination and to ensure correct operating pressure and lubrication.
