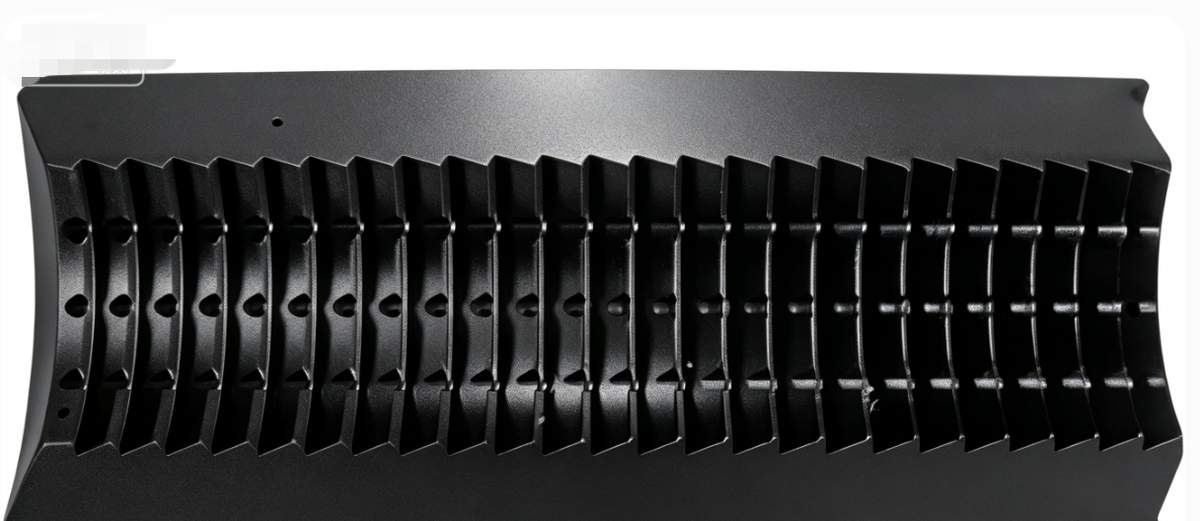

DEENPU TC600-FCR Full Circle Slip Body & FCI Inserts
Product Overview
The DEENPU TC600-FCR Full Circle Slip Body with FCI (Full Circle Insert) system is a high-capacity slip assembly used with DEENPU C-HD air operated tubing spiders and other “Advance” style spiders. The full-circle design provides 360-degree contact around the tubular, distributing load evenly and reducing damage to pipe surfaces during running and pulling operations. Three standard slip-body sizes cover tubing and casing diameters from 1.315″ through 4.500″ OD, with individual insert sets matched to the exact pipe OD.
The modular insert system allows rig crews to change pipe sizes quickly by swapping insert sets rather than the entire slip assembly, reducing rig-floor inventory and downtime.
Key Features
- 360-degree full-circle grip — even load distribution around the tubular
- Three standard slip-body sizes — TC600-FCR-1, TC600-FCR-2, TC600-FCR-3
- Replaceable FCI inserts — multiple insert sets per body size to match common API pipe ODs
- Retaining-pin retention — inserts held securely with TC601 retaining pins and TC602-S cotter pins
- High-strength alloy steel — heat-treated slip body and hardened inserts for long service life
- Complete hardware included — TB116 bolts, TB117 nuts, retaining pins, and cotter pins supplied per set
Technical Specifications
| Part Number | Description | Tubular OD Range | Qty |
|---|---|---|---|
| TC600-FCR-1 | FCR slip body with retaining pins (less inserts) | 1.315″ – 2.063″ (33 – 52 mm) | 1 set |
| TC651-2.063×1.315 | FCI inserts for 1.315″ OD tubing | 1.315″ | 1 set |
| TC651-2.063×1.660 | FCI inserts for 1.660″ OD tubing | 1.660″ | 1 set |
| TC651-2.063×1.900 | FCI inserts for 1.900″ OD tubing | 1.900″ | 1 set |
| TC650-2.063 | FCI inserts for 2.063″ OD tubing | 2.063″ | 1 set |
| TC600-FCR-2 | FCR slip body with retaining pins (less inserts) | 2.375″ – 3.500″ (60 – 89 mm) | 1 set |
| TC651-3.500×2.375 | FCI inserts for 2.375″ OD tubing | 2.375″ | 1 set |
| TC651-3.500×2.875 | FCI inserts for 2.875″ OD tubing | 2.875″ | 1 set |
| TC650-3.500 | FCI inserts for 3.500″ OD tubing | 3.500″ | 1 set |
| TC600-FCR-3 | FCR slip body with retaining pins (less inserts) | 3.500″ – 4.500″ (89 – 114 mm) | 1 set |
| TC651-4.500×3.500 | FCI inserts for 3.500″ OD tubing | 3.500″ | 1 set |
| TC651-4.500×4.000 | FCI inserts for 4.000″ OD tubing | 4.000″ | 1 set |
| TC650-4.500 | FCI inserts for 4.500″ OD tubing | 4.500″ | 1 set |
| TB116 | Bolt for slip body | – | 4 each |
| TB117 | Nut for slip bolt | – | 4 each |
| TC601 | Retaining pin for inserts | – | 4 each |
| TC602-S | Cotter pin | – | 4 each |
Materials & Manufacturing
TC600-FCR slip bodies are investment-cast or forged from high-strength low-alloy steel and heat-treated to provide a tough core with a wear-resistant surface. FCI inserts are machined from alloy steel, case-hardened to grip tubing securely without excessive biting, and precision-ground to match API pipe diameters. Retaining pins and cotter pins are manufactured from spring steel and plated for corrosion resistance.
Standards & Compliance
- Interchangeable with industry-standard “Advance” style full-circle slip bodies
- Inserts dimensioned to common API tubing and casing ODs
- Manufactured under ISO-controlled quality procedures
- Material certificates available on request
Applications
- Air-operated tubing spiders (Model C, CHD, F, G)
- Manual and hydraulic spiders accepting full-circle slips
- Running and pulling of tubing, casing, and drill pipe
- Workover and completion operations requiring frequent pipe-size changes
Available Configurations
| Body Size | Part Number | Compatible Pipe OD |
|---|---|---|
| Size 1 | TC600-FCR-1 | 1.315″, 1.660″, 1.900″, 2.063″ |
| Size 2 | TC600-FCR-2 | 2.375″, 2.875″, 3.500″ |
| Size 3 | TC600-FCR-3 | 3.500″, 4.000″, 4.500″ |
Inspection & Documentation
- Dimensional inspection report for each slip body
- Hardness test report for inserts
- Material test report (MTR)
- Assembly and installation drawing
- Packing list with reference numbers
Packing & Delivery
Slip bodies and inserts are packed in separate wooden or steel-reinforced boxes, with machined surfaces protected by rust inhibitor. Insert sets are bundled by size and clearly labeled with part numbers.
- Delivery: 7 – 30 days, depending on quantity and insert sizes
- Packing: Wooden box with foam separation, export crating available
- Shipping: FOB, CIF, or DAP
Information Required for Quotation
- Slip body size required (TC600-FCR-1, -2, or -3) or spider model
- Pipe OD(s) and schedule/weight to be handled
- Quantity of slip bodies and insert sets
- Whether hardware kit (bolts, nuts, pins) is required
- Destination port and Incoterms
FAQ
How do I select the correct FCI insert?
Match the insert part number to the nominal OD of the tubing or pipe. For example, TC651-2.063×1.315 is used for 1.315″ OD tubing with the TC600-FCR-1 body.
Can I use FCI inserts in a standard segmented slip?
No. FCI inserts are designed specifically for the TC600-FCR full-circle slip body. Segmented slip bodies use different insert styles.
How many inserts are in one set?
Each insert set (part number starting with TC651 or TC650) is supplied as one complete set for the specified pipe OD.
What is included in a complete TC600-FCR assembly?
A complete assembly includes one slip body, one insert set matched to pipe OD, four TB116 bolts, four TB117 nuts, four TC601 retaining pins, and four TC602-S cotter pins.
Do you supply button or chevron inserts?
Yes. In addition to full-circle FCI inserts, DEENPU can supply button inserts, chevron inserts, and strip inserts on request.
Related Products
- DEENPU C-HD Air Operated Tubing Spider
- DEENPU C-HD Spider Air Control System & Accessories
- DEENPU 2″ 5K Manifold Fittings
Contact DEENPU for Orders & Technical Support
Email: SALES@DEENPU-MACHINERY.COM
WhatsApp: +86 158 0628 4962
Send us your pipe OD and spider model, and we will recommend the correct TC600-FCR slip body and FCI insert set.
