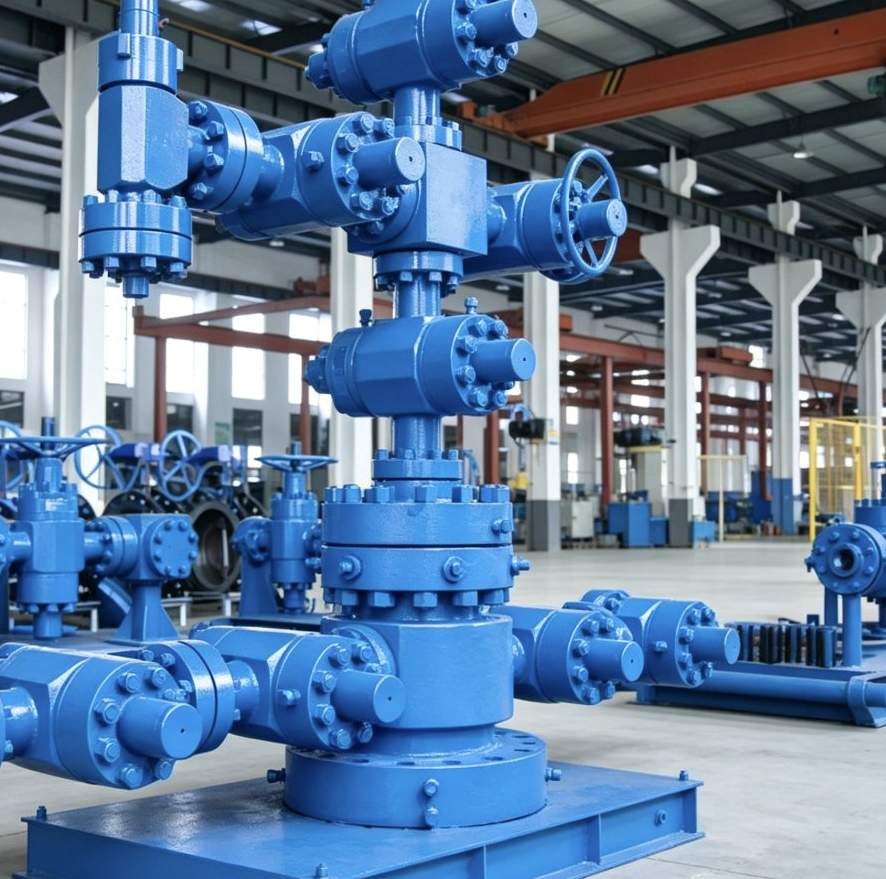

Wellhead Christmas Tree – API 6A
DEENPU API 6A Christmas Tree is the valve-and-spool assembly installed on top of the wellhead to control and direct the flow of oil, gas, or injection fluids. Designed, manufactured, and tested in full compliance with API Spec 6A (21st edition) and NACE MR0175 / ISO 15156, our trees are supplied for production wells, injection wells, geothermal wells, and well-testing operations worldwide.
Each tree is configured to order with gate valves, chokes, and instrumentation to match the well’s pressure rating, material class, and service environment. Both solid-block and composite (spool-type) constructions are available, in single-wing and dual-wing layouts, with manual, hydraulic, or pneumatic actuation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Design Standard | API Spec 6A, ISO 10423, NACE MR0175 |
| Nominal Bore | 2-1/16 inch, 2-9/16 inch, 3-1/8 inch, 4-1/16 inch, 5-1/8 inch, 7-1/16 inch |
| Working Pressure | 2,000 / 3,000 / 5,000 / 10,000 / 15,000 / 20,000 PSI |
| Material Class | AA, BB, CC, DD, EE, FF, HH |
| Temperature Class | K, L, P, R, S, T, U, V (-75°F to 650°F) |
| Product Specification Level | PSL1, PSL2, PSL3, PSL3G, PSL4 |
| Performance Requirement | PR1, PR2 |
| Configuration | Single wing / dual wing; solid block or composite |
| Valve Actuation | Manual, hydraulic, or pneumatic |
| Body Material | AISI 4130 / 4140 forged alloy steel (Inconel 625 clad optional) |
Standard Tree Components
- Tubing head adapter with studded or flanged top connection
- Lower master valve, upper master valve, and wing valve(s)
- Swab valve (vertical access) with tree cap
- Adjustable or positive choke on production wing
- Pressure gauges, needle valves, and sampling ports
- API 6A ring gaskets, studs, and nuts – full fastener kit included
- Optional: surface safety valve (SSV) with hydraulic actuator and control panel
Key Features
- Integral forged valve bodies – no castings in pressure-containing parts
- Metal-to-metal sealing gate valves with non-rotating stems
- Full opening bores for wireline and coiled-tubing intervention
- Inconel 625 weld-overlay option for severe sour (H2S/CO2) service
- Each tree hydrostatically body-tested and seat-tested per API 6A with test certificates
- Third-party inspection (BV, DNV, SGS, TÜV) available on request
- Fumigation-free export packing with full documentation dossier
Applications
- Oil and gas production wells – onshore and offshore
- Water, gas, and steam injection wells
- Well testing and flowback operations
- Geothermal and CCUS (carbon capture) injection wells
- Workover and well-intervention campaigns
Ordering Information
Please specify when ordering: nominal bore, working pressure, material class, temperature class, PSL/PR level, wing configuration, valve actuation type, choke type, and any third-party inspection requirements. Complete wellhead + tree packages (casing head, casing spools, tubing head, and tree) are available as matched assemblies.
