Hammer Unions Fig 100-1502 | 1000-20000 PSI – DEENPU | API Wellhead & Downhole Equipment Manufacturer

Name: Hammer Unions Fig 100-1502
Brand: DEENPU
SKU: DNP-FL-101
Availability: InStock

DEENPU Hammer Unions — Fig 100 to Fig 1502

1000-20000 PSI

Home › Hammer Unions, Treating Irons & Flowline Equipment › Hammer Unions Fig 100-1502

DEENPU Hammer Unions — Fig 100 to Fig 1502, wing unions for high pressure flowlines

Product Overview

DEENPU hammer unions are the fast, leak-tight way to join high pressure flowline pipe without threading, welding or special tools. The male sub, female sub and wing nut hammer up by hand and a strike of the hammer — the spherical metal-to-metal interface aligns and seals itself.

The full range is covered: Fig 100 for low pressure suction and transfer lines, Fig 200 / 206 (O-ring sealed) for air, water, oil and gas to 2000 PSI, Fig 602 for 5000 PSI service, Fig 1002 for 10000 PSI, and Fig 1502 with but-weld or integral ends for cementing and acid service to 15000 PSI. Subs are color coded per industry convention for instant figure identification.

Key Features

Fig 100 / 200 / 206 / 602 / 1002 / 1502 full range
1000 – 20000 PSI cold working pressure
O-ring sealed spherical joint on Fig 206 and above
Color coded nuts and subs per industry convention
Threaded, butt-weld or integral end configurations
Sizes 1″ – 6″; sour service materials on request

Technical Specifications

Fig 100	Black nut / yellow subs — 1000 PSI CWP
Fig 200 / 206	Blue nut / grey subs — 2000 PSI CWP, O-ring sealed (206)
Fig 602	Grey nut / grey subs — 5000 PSI CWP
Fig 1002	Grey nut — 10000 PSI CWP
Fig 1502	Purple nut — 15000 PSI CWP (acid service option)
Sizes	1″ – 6″
Ends	NPT threaded / butt-weld / integral

Dimensions & Technical Data

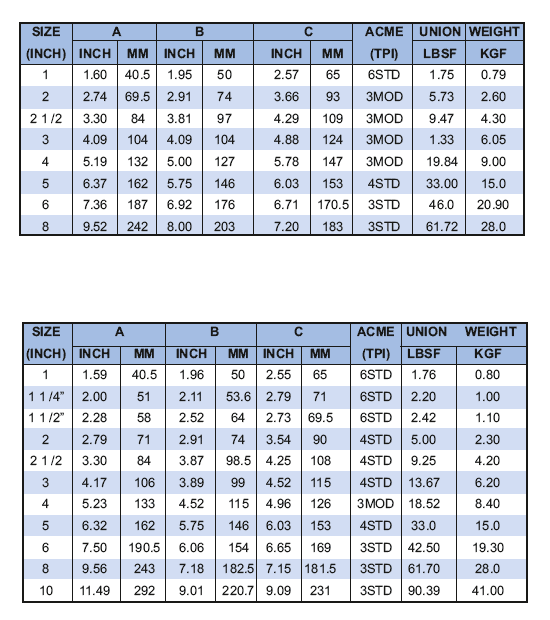

Hammer union dimensions table — Fig 100, 200, 206, 602, 1002, 1502 sizes 1 to 6 inch with CWP ratings

Hammer union dimensions and pressure ratings — Fig 100 to Fig 1502

Quality & Testing

Every DEENPU Hammer Unions Fig 100-1502 is manufactured under our API-compliant quality system: raw material traceability, 100% dimensional inspection, hydrostatic pressure testing and hardness verification before packing. Material certificates, inspection reports and API documentation are provided with shipment on request.

Applications

Cementing, circulating and acidizing discharge lines
Choke and kill lines, standpipe manifolds
Well test and flowback flowlines
Suction and transfer lines (Fig 100 / 200)

Frequently Asked Questions

Q: What is the difference between Fig 200 and Fig 206?

A: Same dimensions and rating (2000 PSI), but Fig 206 adds an O-ring on the spherical surface of the male sub for a leak-proof seal — preferred for gas service.

Q: Are unions interchangeable with other brands?

A: Yes, DEENPU hammer unions follow the industry-standard figure dimensions and interchange with WECO-style unions of the same figure number.

Q: Which figure for acidizing?

A: Fig 1502 with acid-service seal material is the standard choice for 15000 PSI acidizing and cementing discharge.
