High Pressure Elbows & Laterals
DEENPU elbows and laterals for frac, flowback and well testing manifolds. Available in 2″, 3″ 1502, 4″ 1002, and 4″ 1502 with Male/Female end connections.

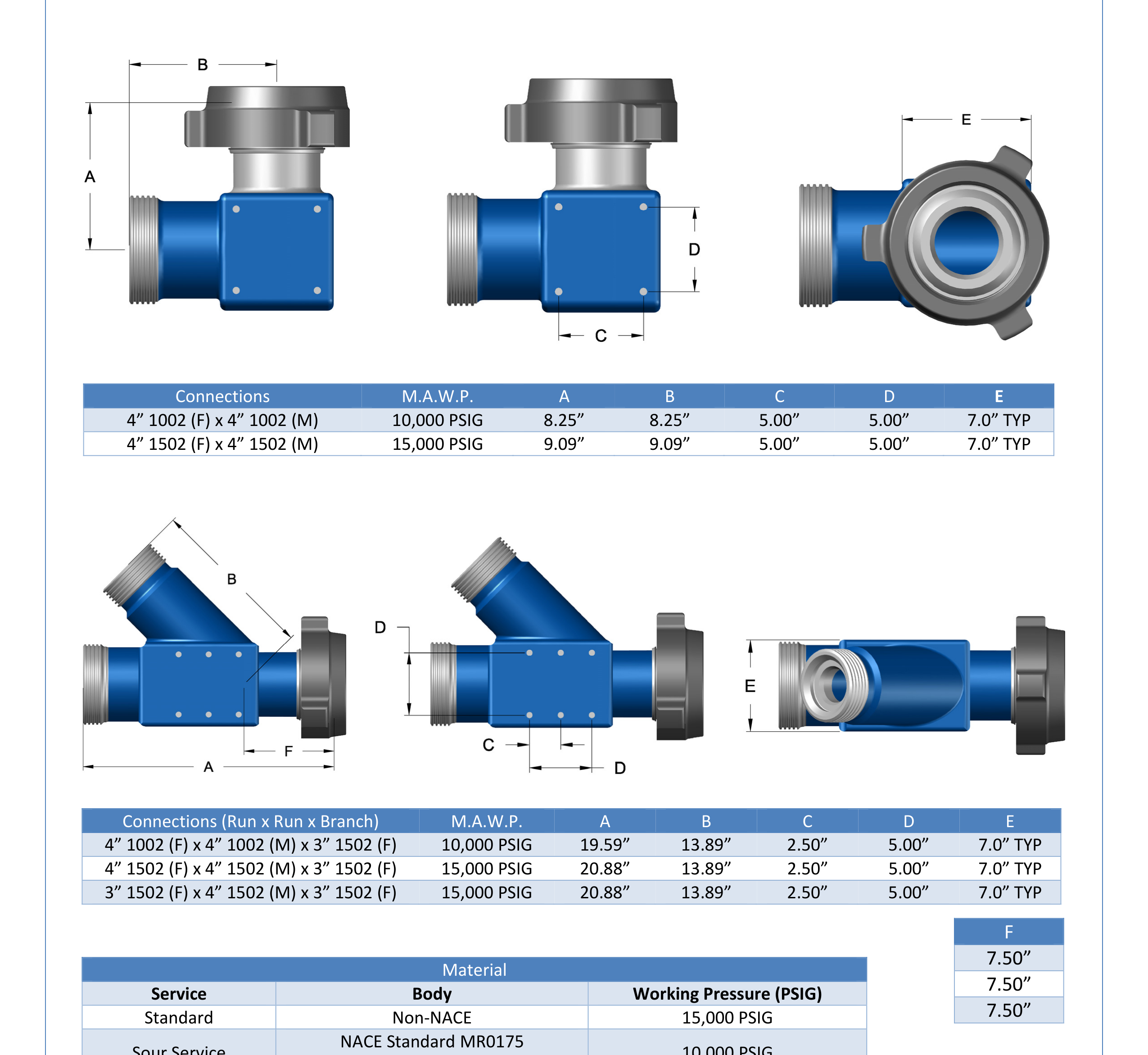

Lateral Dimensions
| Connections (Run x Run x Branch) | MAWP (PSIG) | A (in) | B (in) | C (in) | D (in) | E (in) |
|---|---|---|---|---|---|---|
| 4″ 1002 (F) x 4″ 1002 (M) x 3″ 1502 (F) | 10,000 | 19.59 | 13.89 | 2.50 | 5.00 | 7.0 TYP |
| 4″ 1502 (F) x 4″ 1502 (M) x 3″ 1502 (F) | 15,000 | 20.88 | 13.89 | 2.50 | 5.00 | 7.0 TYP |
| 3″ 1502 (F) x 4″ 1502 (M) x 3″ 1502 (F) | 15,000 | 20.88 | 13.89 | 2.50 | 5.00 | 7.0 TYP |
Elbows available in standard Male x Female and Male x Male configurations for all sizes.
Contact DEENPU for Orders & Technical Support
