High Pressure Swivel Joints — Styles 10-100

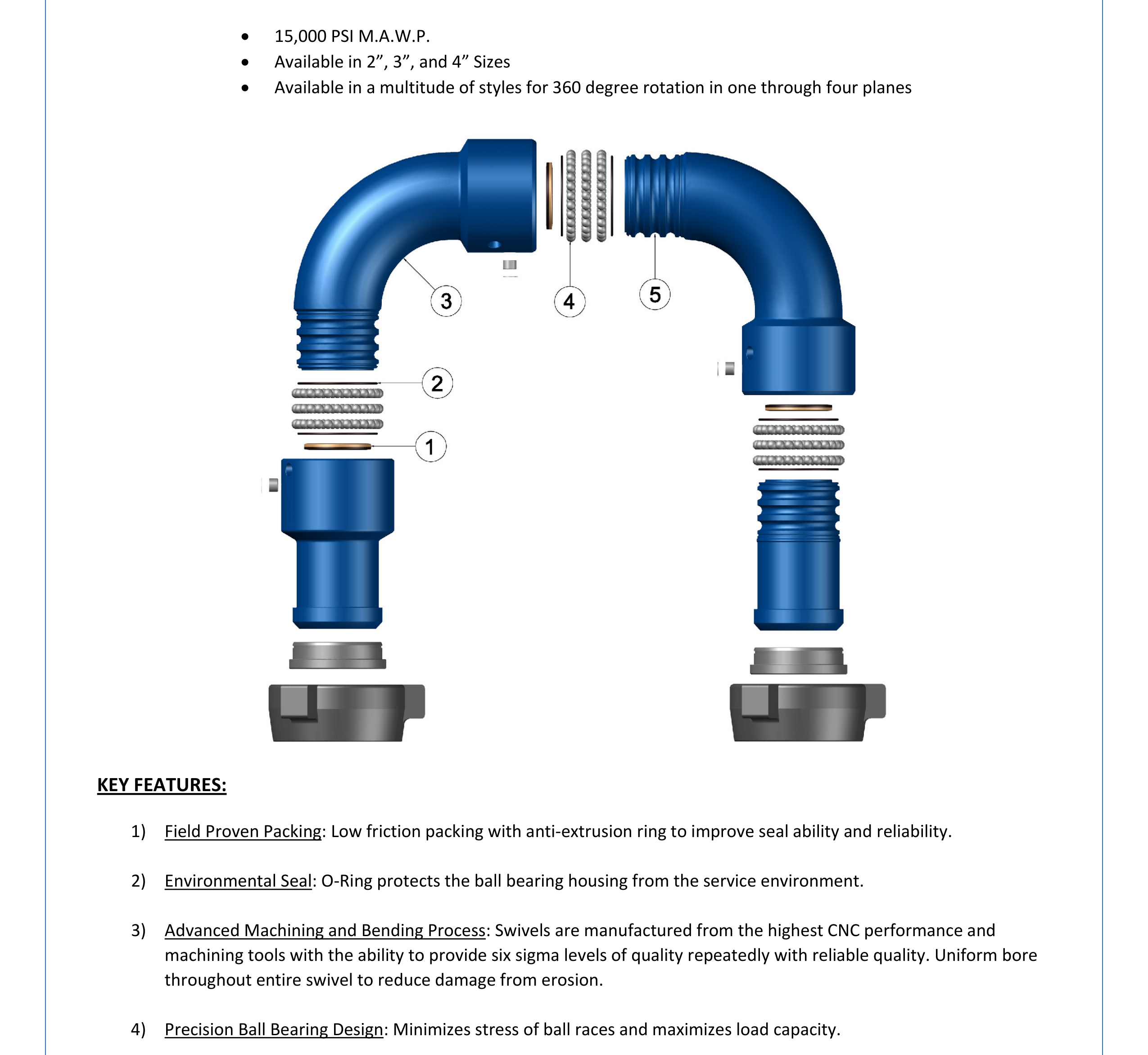

DEENPU Chiksan-style swivel joints for frac and flowback. 15,000 PSIG. Precision ball bearing design, heavy wall thickness under ball races for erosion allowance, uniform bore for reduced damage. Available in Styles 10, 20, 30, 50, 60, 80, 100.
Swivel Joint Centerlines — Style 10 (M x M)
| Size | WP | A | B | C | D | E (Sty 10) |
|---|---|---|---|---|---|---|
| 2″ 1502 | 15K | 10.94 | 10.69 | 5.50 | 11.19 | 21.63 |
| 3″ 1502 | 15K | 14.50 | 16.37 | 7.88 | 12.62 | 30.87 |
| 4″ 1002 | 10K | 16.00 | 17.75 | 8.50 | 14.25 | 33.75 |
| 4″ 1502 | 15K | 19.07 | 20.95 | 10.03 | 17.19 | 40.02 |
Styles 20, 30, 50, 60, 80, 100 available in MxF configurations. O-Ring environmental seal protects ball bearing housing.
Contact DEENPU for Orders & Technical Support
Email: SALES@DEENPU-MACHINERY.COM
WhatsApp: +86 158 0628 4962
