Hydraulic Plug Valve
DEENPU hydraulic actuated plug valves for automated frac manifold and flowback control systems. Available in 1″ through 4″ sizes with LP, 1502, 1002 and API flange connections. NACE and Non-NACE options.

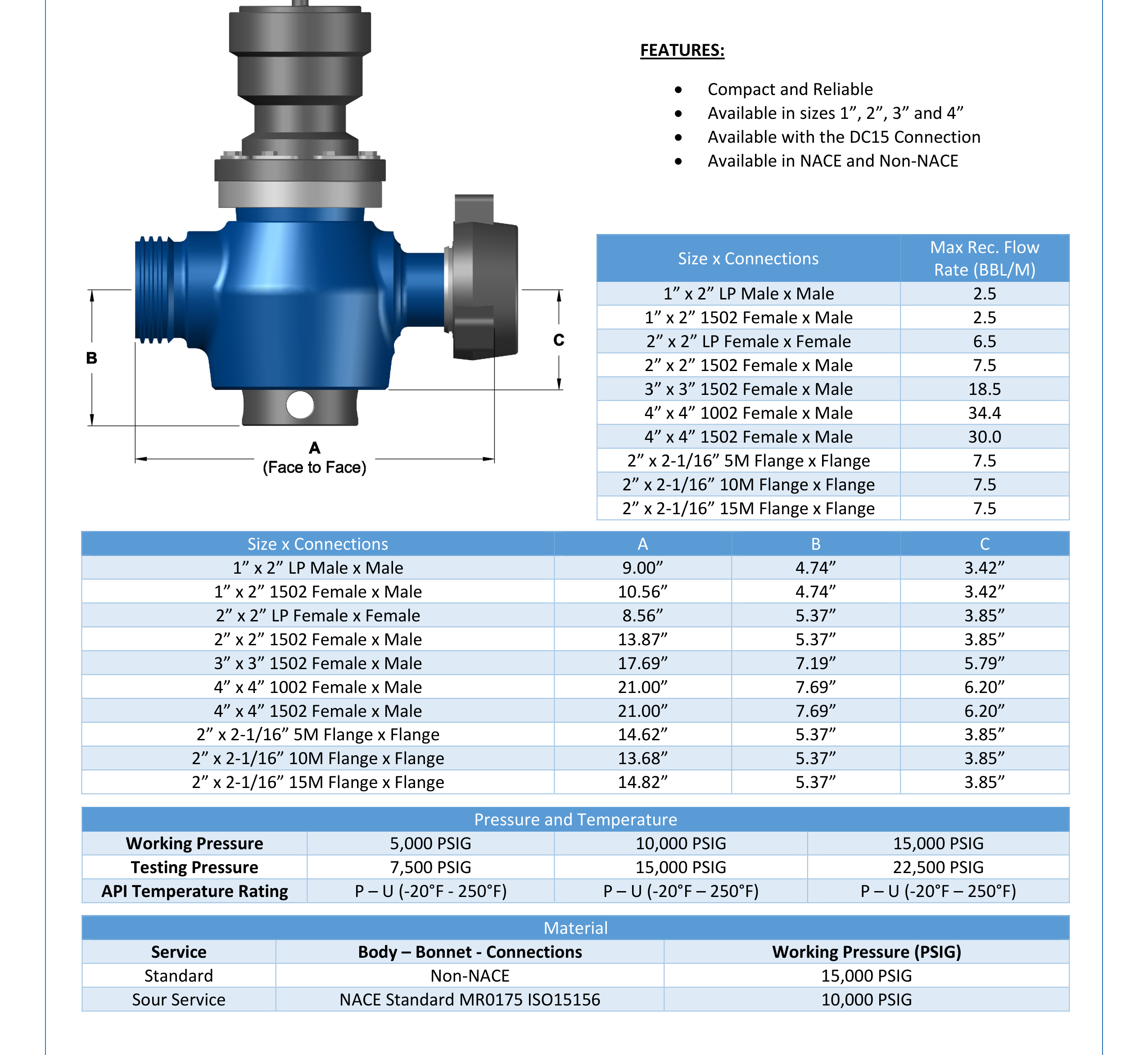

Specifications
| Size x Connections | A (in) | B (in) | C (in) | Max Flow (BBL/M) |
|---|---|---|---|---|
| 1″ x 2″ LP M x M | 9.00 | 4.74 | 3.42 | 2.5 |
| 2″ x 2″ 1502 F x M | 13.87 | 5.37 | 3.85 | 7.5 |
| 3″ x 3″ 1502 F x M | 17.69 | 7.19 | 5.79 | 18.5 |
| 4″ x 4″ 1002 F x M | 21.00 | 7.69 | 6.20 | 34.4 |
| 4″ x 4″ 1502 F x M | 21.00 | 7.69 | 6.20 | 30.0 |
| 2″ x 2-1/16″ 5/10/15M Flange | 14.62 | 5.37 | 3.85 | 7.5 |
Contact DEENPU for Orders & Technical Support
Email: SALES@DEENPU-MACHINERY.COM
WhatsApp: +86 158 0628 4962
