DEENPU Ball Deflector Cross - 4 inch 1502, 15000 PSIG, top entry removable screen, captures up to 2-3/8 inch balls for frac flowback

Ball Deflector Cross | 4 inch 1502 | 15000 PSIG | Removable Screen | Frac Flowback

¥0.00

DEENPU ball deflector cross, 4 inch 1502, 15000 PSIG. Removable top-entry screen, inline replaceable. Captures up to 2-3/8 inch balls.

SKU: DNP-BD-001 Category:

Ball Deflector (Cross)

DEENPU ball deflector cross removes frac balls from flowback fluid while allowing continuous flow. Removable top-entry screen can be replaced inline without disconnecting the manifold.

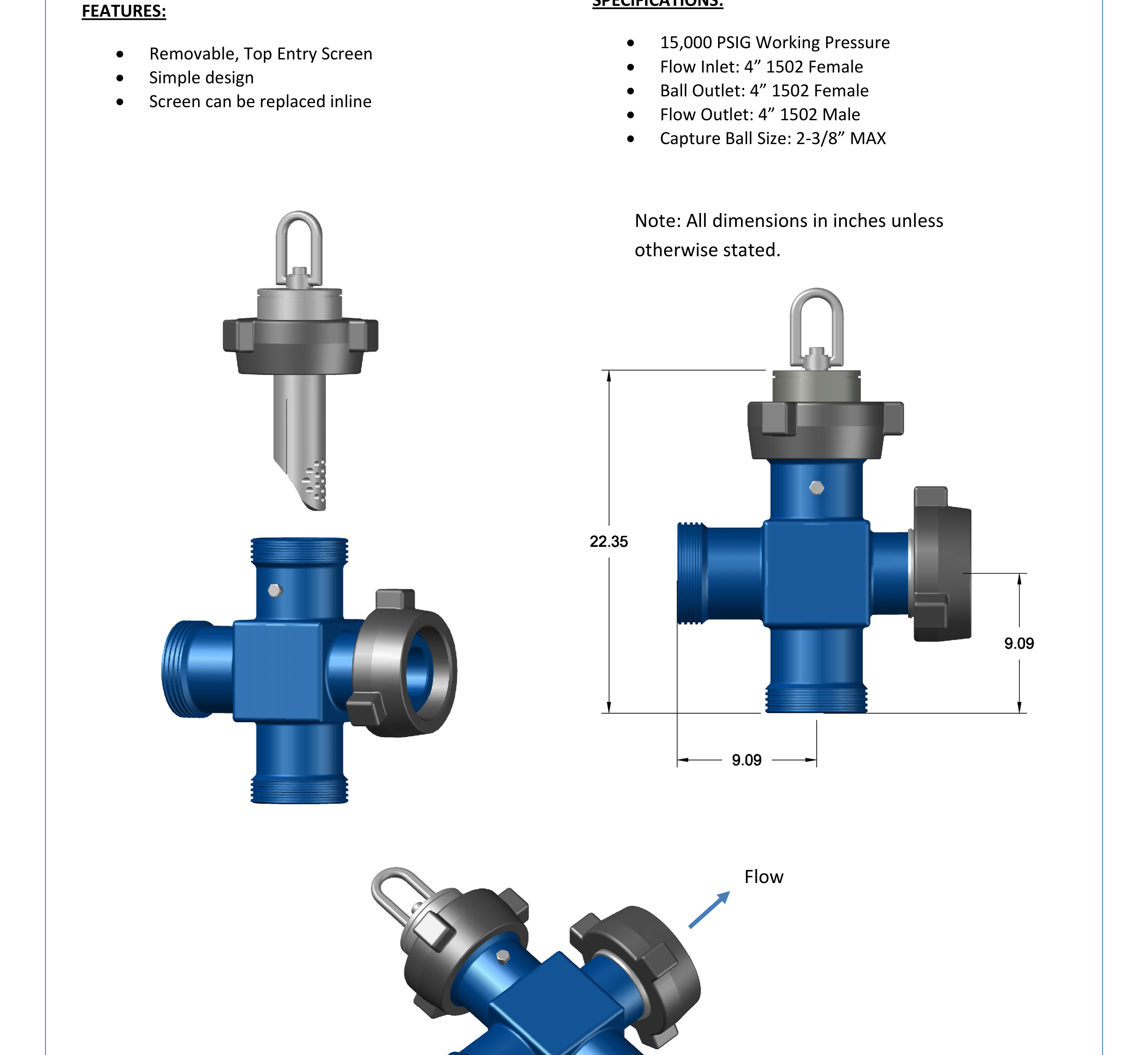

Specifications

Working Pressure: 15,000 PSIG Flow Inlet: 4 inch 1502 Female
Ball Outlet: 4 inch 1502 Female Flow Outlet: 4 inch 1502 Male
Max Ball Size: 2-3/8 inch Screen: Removable, Top Entry, Inline Replaceable

Contact DEENPU for Orders & Technical Support

Email: SALES@DEENPU-MACHINERY.COM
WhatsApp: +86 158 0628 4962
