Plug Valve — Complete Component Breakdown

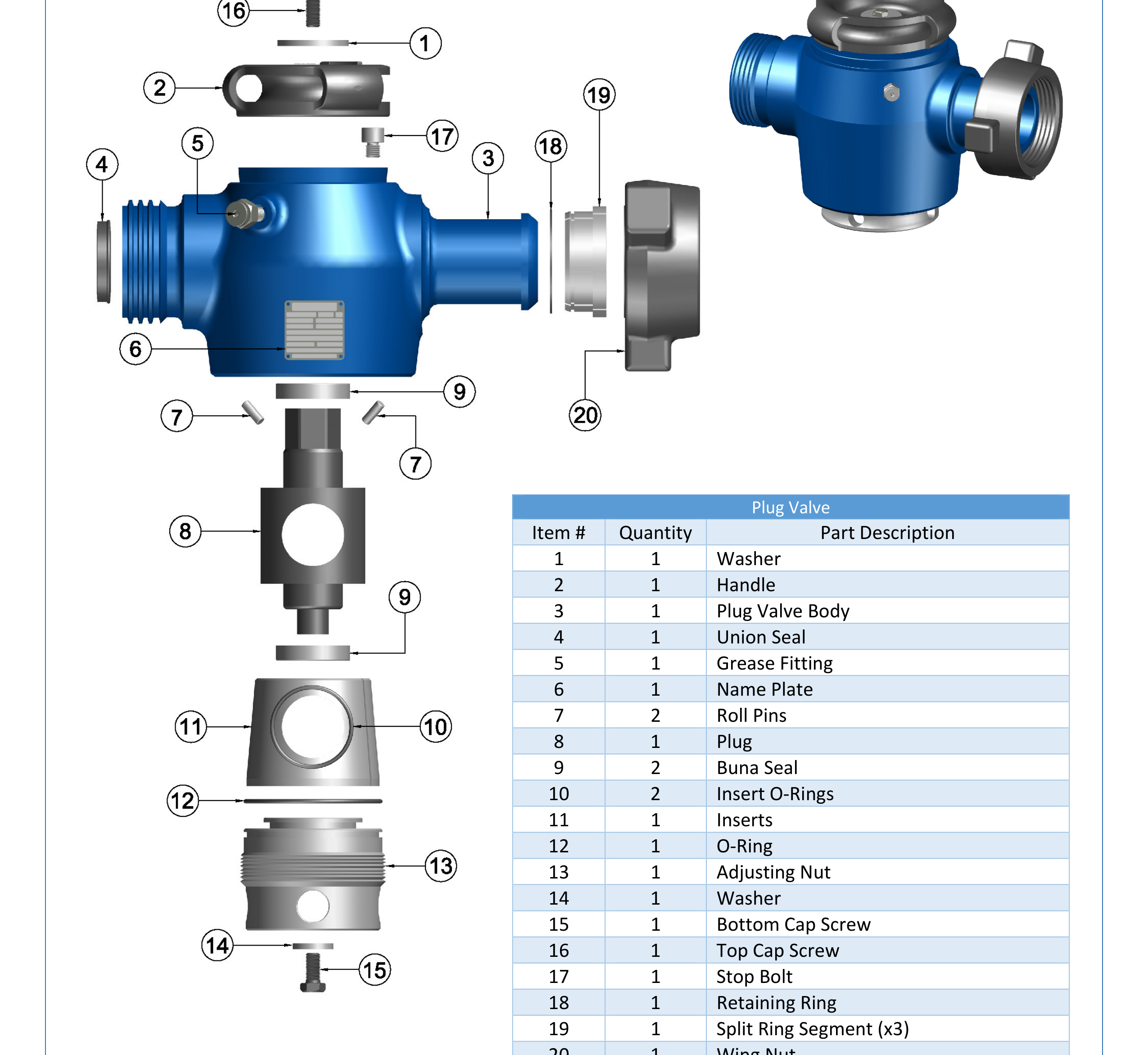

DEENPU high pressure plug valves consist of 20 individual components. Below is the complete parts breakdown for all sizes.
| Item | Qty | Part Description |
|---|---|---|
| 1 | 1 | Washer |
| 2 | 1 | Handle |
| 3 | 1 | Plug Valve Body |
| 4 | 1 | Union Seal |
| 5 | 1 | Grease Fitting |
| 6 | 1 | Name Plate |
| 7 | 2 | Roll Pins |
| 8 | 1 | Plug |
| 9 | 2 | Buna Seal |
| 10 | 2 | Insert O-Rings |
| 11 | 1 | Inserts |
| 12 | 1 | O-Ring |
| 13 | 1 | Adjusting Nut |
| 14 | 1 | Washer |
| 15 | 1 | Bottom Cap Screw |
| 16 | 1 | Top Cap Screw |
| 17 | 1 | Stop Bolt |
| 18 | 1 | Retaining Ring |
| 19 | 1 | Split Ring Segment (x3) |
| 20 | 1 | Wing Nut |
Pressure & Temperature Ratings
| 5,000 PSIG | 10,000 PSIG | 15,000 PSIG | |
|---|---|---|---|
| Working Pressure | 5,000 | 10,000 | 15,000 |
| Test Pressure | 7,500 | 15,000 | 22,500 |
| API Temp Rating | P – U (-20F to 250F) | ||
| Material Service | Non-NACE: 15K | NACE MR0175 ISO15156: 10K | |
