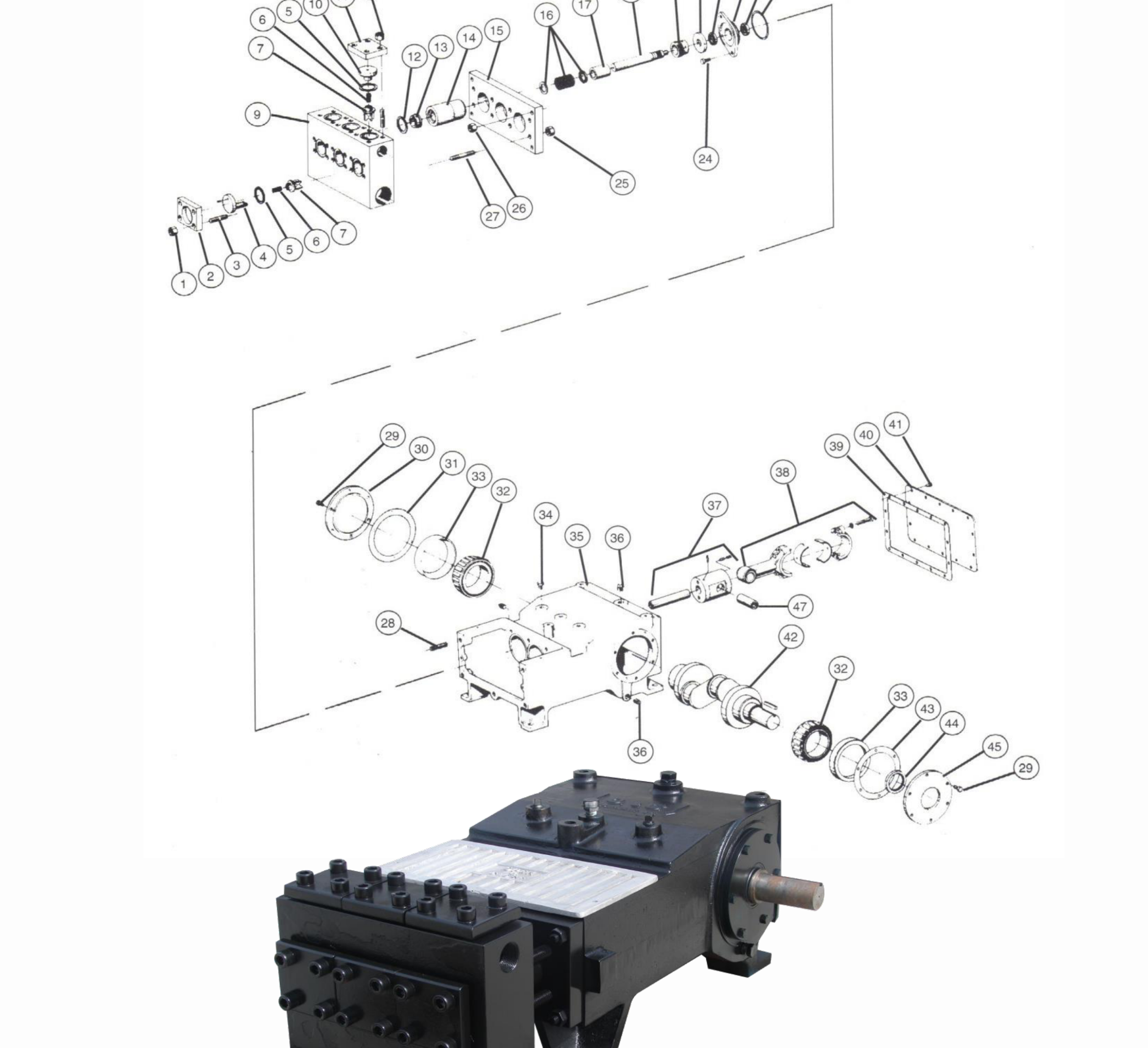

OC-30 Triplex Pump
DEENPU OC-30 Triplex Pump is a heavy-duty hydraulic power unit designed for large BOP control systems with high accumulator volume requirements. Available in 15 to 30 HP configurations, this pump delivers 3,000 PSI maximum discharge pressure with the reliability required for critical well control operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pump Type | Triplex positive displacement |
| Horsepower Range | 15 HP, 20 HP, 25 HP, 30 HP |
| Max Working Pressure | 3,000 PSI |
| Stroke Length | 2-3/4 inches |
| Rod Load | 2,825 lbs |
| Voltage Options | 230V, 460V, 380V, 575V |
Key Features
- Heavy-duty triplex design for large accumulator banks
- 2,825 lb rod load capacity for high-pressure service
- 15-30 HP configurations for high flow requirements
- Multi-voltage motor options (230/460/380/575V)
- Complete repair kits and spare parts available
- Ideal for large multi-ram BOP stack control systems
